Telonic Instruments presents SIGLENT Technologies new Flagship 1 GHz Oscilloscope

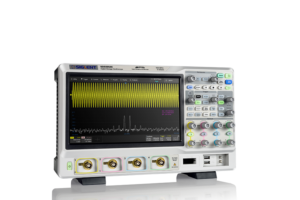

The new SDS5000X Oscilloscope series is available with a bandwidth up-to 1 GHz, a maximum sample rate of 5 GS/s, and a maximum acquisition memory of 250 Mpts. It features powerful data analysis and measurement features and is well equipped to solve the complex challenges of embedded circuit design.

SDS5000X-series is available with bandwidths of 350, 500, and 1 GHz, features a maximum sample rate of 5 GS/s, 250 Mpts of acquisition memory and a waveform-update rate of up-to 110,000 wfm/s. To help maintain high test speeds, many of its waveform analysis features are implemented in hardware.

The SDS5X includes a full digital trigger with qualified and zone triggering to help isolate faults more quickly. This technique enables a highly sensitive and accurate trigger control. It also includes a new low noise front end that delivers an industry leading vertical sensitivity of 500 µV/div, making the SDS5X a perfect tool for debugging small signals.

One of the best features of this new platform is the usability. The scope includes a large 10.1” touch screen that includes gesture operation and a clear layout that makes the scope extremely easy-to-use. For example, setting up the zone trigger is as simple as drawing a square with your finger.

STANDARD SERIAL BUS TRIGGERING AND DECODER, SUPPORTS PROTOCOLS: I2C, SPI, UART, CAN and LIN.

MODEL CHANNELS BANDWIDTH REAL TIME SAMPLING RATE CAPTURE RATE MEMORY DEPTH PRICE
SDS5032X 2+EXT 350MHz 5GSa/s (Single Ch.)
2.5GSa/s (dual-Ch.)
110,000 wfm/s (Normal Mode) 480,000 wfm/s (Sequence Mode) 250 Mpts (Single Ch.)
125 Mpts (Dual-Ch.)
£2,266
SDS5034X 4+EXT 350MHz 5GSa/s (Single Ch.)
2.5GSa/s (dual-Ch.)
110,000 wfm/s (Normal Mode) 480,000 wfm/s (Sequence Mode) 250 Mpts (Single Ch.)
125 Mpts (Dual-Ch.)
£2,571
SDS5052X 2+EXT 500MHz 5GSa/s (Single Ch.)
2.5GSa/s (dual-Ch.)
110,000 wfm/s (Normal Mode) 480,000 wfm/s (Sequence Mode) 250 Mpts (Single Ch.)
125 Mpts (Dual-Ch.)
£4,130
SDS5054X 4+EXT 500MHz 5GSa/s (Single Ch.)
2.5GSa/s (dual-Ch.)
110,000 wfm/s (Normal Mode) 480,000 wfm/s (Sequence Mode) 250 Mpts (Single Ch.)
125 Mpts (Dual-Ch.)
£4,444
SDS5102X 2+EXT 1GHz 5GSa/s (Single Ch.)
2.5GSa/s (dual-Ch.)
110,000 wfm/s (Normal Mode) 480,000 wfm/s (Sequence Mode) 250 Mpts (Single Ch.)
125 Mpts (Dual-Ch.)
£4,685
SDS5104X 4+EXT 1GHz 5GSa/s (Single Ch.)
2.5GSa/s (dual-Ch.)
110,000 wfm/s (Normal Mode) 480,000 wfm/s (Sequence Mode) 250 Mpts (Single Ch.)
125 Mpts (Dual-Ch.)
£5,698

For multi-domain analysis, the oscilloscope has hardware-based frequency analysis utilizing up-to 2 Mpts for the FFT-calculation. This deep memory FFT provides higher frequency resolution than many other FFT based systems. Furthermore, the SDS5X can be upgraded to include MSO/16 digital channels and an external 25 MHz arbitrary waveform generator at any time.

For serial bus troubleshooting, the SDS5X includes free decoding on all low speed serial buses (RS232, CAN, LIN, and I2C) and can be upgraded with decoding kits for more specialized buses (CAN-FD, I2S, FlexRay and MIL1553B) at any time. The scope also features bandwidth upgrade options that give you the flexibility to get the performance you need at a price you can afford.

Please contact Telonic Instruments for further details.

Tel: +44 (0) 118 9786911

Web: www.telonic.co.uk

Web: www.siglent.co.uk
