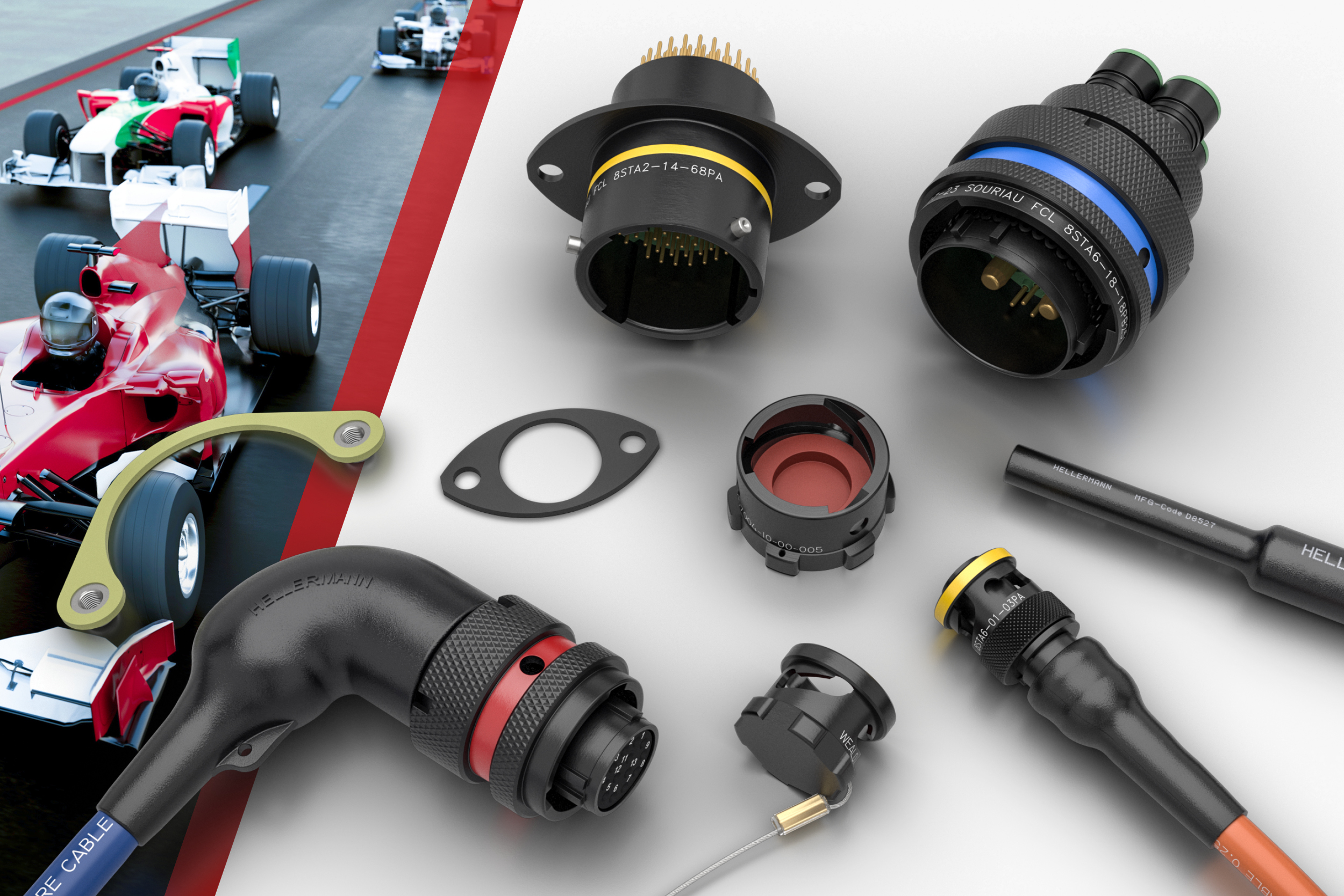

Souriau 8STA circular connectors from Lane Motorsport provide the lead in high-reliability, miniaturisation and weight reduction

Motorsport is a market where more and more electronics are being installed while at the same time space and weight constraints become increasingly critical and dependability is a must.

The Souriau 8STA series are miniature circular connectors that are designed to be smaller and lighter with high-reliability features to ensure race performance and driver safety.

According to Pete Costin at Lane Motorsport, these are among the smallest and lightest circular connectors of their type currently available and as such they are the preferred connectors across the world of competitive motorsport for sensors and electronics systems in applications such as engine management, data acquisition, steering wheels, telemetry, fuel tanks and hybrid energy recovery systems.

Featuring a rugged aluminium body plated with ROHS compliant conductive black zinc as standard, the 8STA connectors are derived from international military specifications MIL-DTL-38999 and Eurofighter JN1003. As a result, they are designed to withstand the high levels of shock and vibration that are also found in Motorsport.

The 8STA series features a smooth, quick and secure 1/3 turn bayonet coupling and different key orientations are colour-coded for ease of identification when space and time is a premium. Integral backshells on the cable plugs and special oval flanges on the panel-mount receptacles combine to further reduce weight and connector size.

When mated, the connector meets the requirements of IP67 and can withstand salt spray and many types of fluids including those found across motorsport platforms. Glass-to-metal sealed hermetic receptacles and feedthroughs complete the range with specific fuel tank versions for long-term fuel immersion.

Lane Motorsport, the Motorsport Division of Lane Electronics offers standard connectors including high density (HD) 8STA connectors and high power versions from stock with next-day delivery and no MOQ. Also, as an assembling distributor for Souriau connector products, customer specific connectors can be assembled and tested to order on short lead times.

The 8STA range are available from Lane’s online store at www.fclane.com/store
