Smart TFT display with I2C

MMS Electronics has available a new range of smart high resolution TFT graphic displays with analogue touch-screen and fast ARM processor. Android, Linux and Windows CE operating systems are supported. Available in 7 different screen sizes: 3.5” (QVGA), 4.3” (HVGA), 7.0” (WVGA), 8.0” (SVGA), 10” (WSVGA) and high brightness 15” (XGA) and 21” (Full HD). These smart displays are offered as open frame or a choice of aluminium enclosures.  The built-in MPEG video decoder is responsible for sharp images and flawless video playback.

When choosing the Android or Linux operating system designers have access to a large set of open source tools, application, images and icons. For Android OS the application software can be built with Java using the free Eclipse IDE or other development software that supports Android OS.

Connection of external hardware or sensors is made easy via the GPIO, RS-232, RS-485, USB and I2C interface. Also line IN, MIC, speaker and SD card connector are supported.

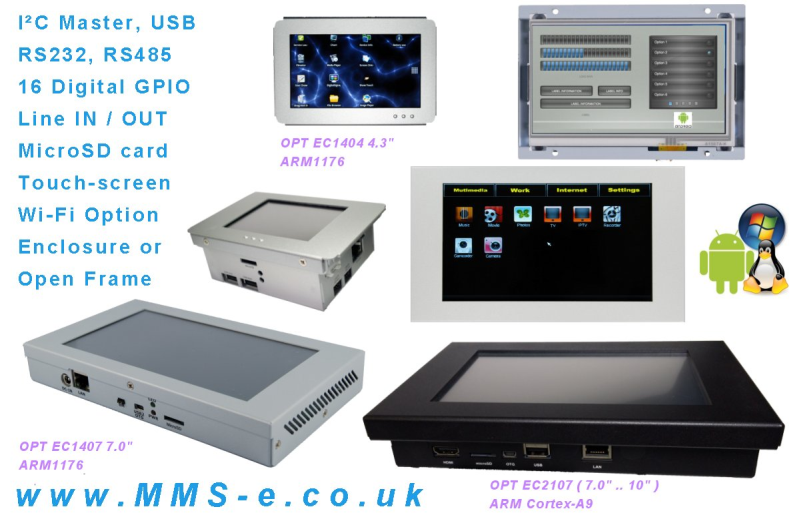

The smallest models OPT EC1403 (3.5”) and OPT EC1404 (4.3”) enclosures  measure only 118x78x38 mm. Powered by an ARM1176 processor @ 700MHz with 512 Mb Flash / 256MB SDRAM and MPEG video decoder. Interface ports for Ethernet LAN, 1 x USB OTG, 2 x USB, 1 x micro SD card slot, 2 x RS232, 1 x RS485, 1 x I2C port. Audio: 1 x mic and 2 speakers. Option for wireless Wi-Fi adapter. Power supply 5V. Supported OS for this model are Android, Linux and Windows CE 6.0.

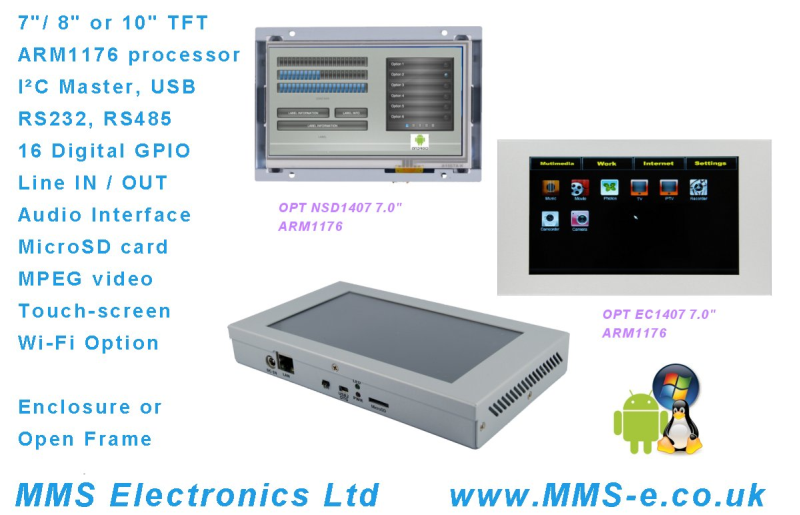

The 1400 series are available as open frame OPT NSD1407 (7.0”), OPT NSD 1408 (8.0”) and OPT NSD1410 (10”) or with aluminium enclosure OPT EC1407 (7.0”), OPT EC1408 (8.0”) and OPT EC1410 (10”). Powered by an ARM1176 processor @ 700MHz with 512 Mb Flash / 256MB SDRAM and MPEG video decoder. Interface ports for Ethernet LAN, 1 x USB OTG, 2 x USB, 1 x micro SD card slot, 1 x RS-232, 1 x RS-485, 1 x I2C port, 16 channel GPIO @ 3.3V. Audio: 1 x mic, 1 x line IN and 1 line OUT. Option for wireless Wi-Fi adapter. Power supply 12V @ 1.5A. Supported OS for this model are Android, Linux and Windows CE 6.0.

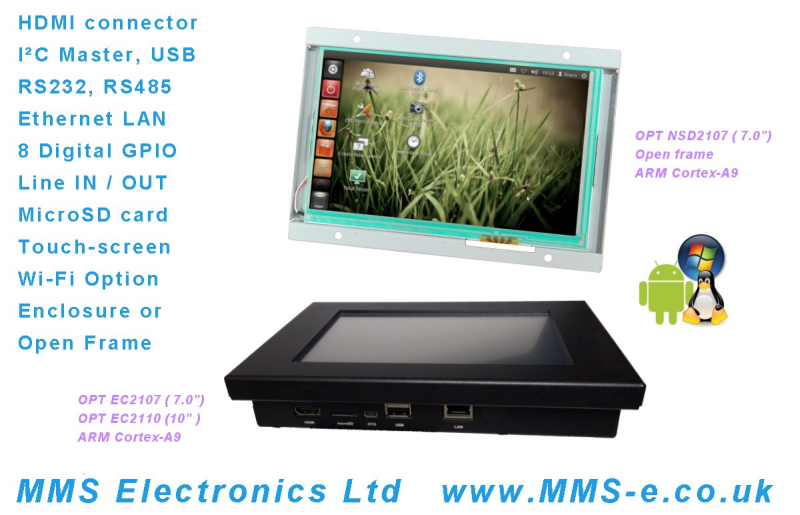

The high performance 2100 series are ideal for multimedia, digital signage and HMI applications. The OPT EC2107WV (7.”), OPT EC2110WX (10.1”), OPT NSD2115XG (15”) and OPT NSD2122FD (21”) have high brightness TFT displays (1000 to 1200 nits). Powered by a Freescale iMX6 (ARM Cortex-A9 Quad0core) @ 1 Ghz with 4 Gb Flash / 1 or 2 SDRAM. Interface ports for Ethernet LAN, 1 x USB OTG, 2 x USB, 1 x micro SD card slot, 1 x RS-232 and 1 xRS-485, 1 x I2C, 8 channel GPIO. Audio: 1 x mic, 2 speakers, 1 headphone, 1 x HDMI. Option for wireless Wi-Fi adapter or CAN bus. Power supply 12V. Supported OS for these models are Android 4.2.2 and Ubuntu 12.04.

MMS Electronics Ltd based in Leeds is a supplier of sensors and quality LCD, OLED, TFT and intelligent display products.

MMS Electronics Ltd

Tel: +44 (0)1943 877668

sales@mms-e.co.uk

www.mmselectronics.co.uk
