Smallest cable gland meets constantly changing market needs

Walter Logan offers industry’s smallest cable gland – the UNI Dicht M4 from PFLITSCH GmbH

Specialist German component supplier, Walter Logan, now offers the industry’s smallest cable gland, the PFLITSCH UNI Dicht cable gland system from PFLITSCH, the German industrial cable gland and cable routeing manufacturer.

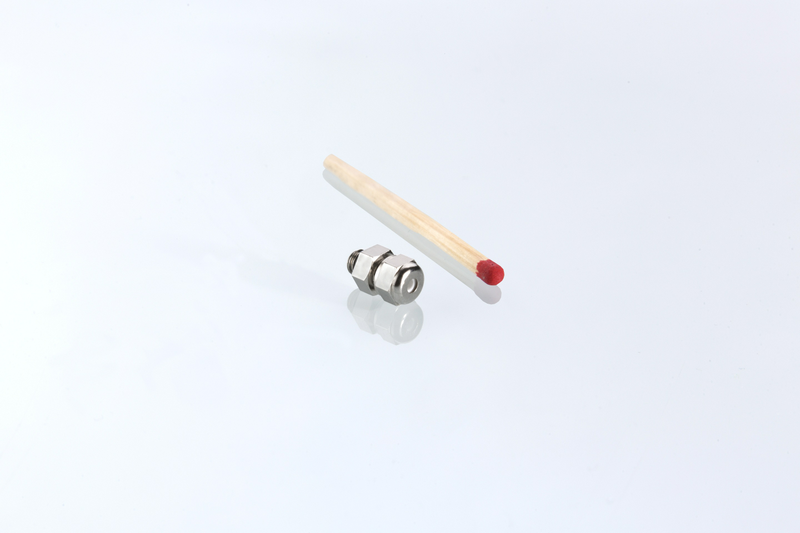

Responding to demands for smaller cable glands, the PFLITSCH UNI Dicht M4 cable gland has a mounting height of just 8.8mm (max) with a connection thread length of 2.7mm.

The PFLITSCH UNI Dicht cable gland is particularly suitable for use in cable and pipeline routeing for sensor systems and in projects where space is a premium. It offers a compact construction with maximum sealing range, from 0.9 to 1.6mm, ensuring it can be used with a wide variety of cable types.

Offering protection against dust ingress the PFLITSCH UNI Dicht M4 cable gland is certified to IP68 and up to 10 bar / one hour. Additionally, an O-ring in the gland provides a seal to the enclosure wall. A wide operating temperature of -40 to +130°C makes the cable gland suitable for use in harsh and extreme environments.

This latest cable gland is offered with brass nickel plating, and a stainless steel version is available on request.


About Walter Logan Ltd
Walter Logan & Co Ltd was established in 1951 and is a privately owned company specialising in supplying bespoke German manufactured components to a host of industries and markets, including engineering, lighting, signage, machine building.

The company is ISO 9001 accredited and focusses on developing business in the lighting and electrical industries in the UK through its strong franchises such as  Pflitsch, Reutlinger, Geissel and Meinzer.
