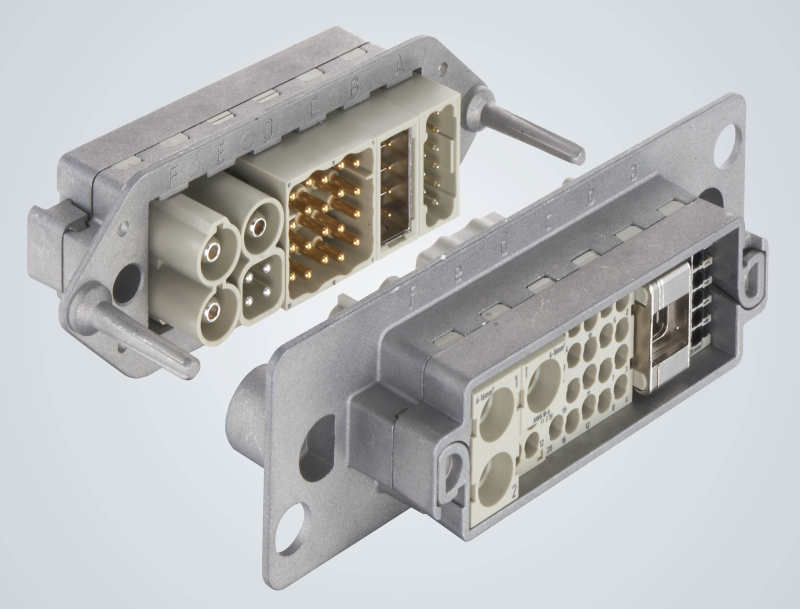

The HARTING Han-Modular Docking Frame Metal is a new robust connector solution for speeding the installation of systems that have to be mated “blind” or coupled automatically – in switch cabinet drawers, for example.
The new docking frame allows machine components to be switched quickly and securely, providing a cost-effective technique for incorporating slide-in modules in low-voltage switching systems or energy storage units along with signals, power and data.
The frame works as a receptacle for units in the company’s Han-Modular family of industrial connectors, in which different modules for the transfer of power, signal and data or compressed air can be located side-by-side. With over 100 different modules, the HARTING modular connector range offers almost endless flexibility and connection options.
The docking frame works without the need for any additional articulated frames, and connector modules can be fitted directly to it, saving time and cost. The frame has two long leading guide pins on the pin side to bring the two connector faces together.
The connectors are located in a “floating” mount with a ±2 mm tolerance, allowing the socket face to be oriented to the ideal position for greater accuracy and a more secure connection. Because grounding is separate in many insertion scenarios, the docking frame has no PE contact, but grounding can be added as required with a Han PE module that can be obtained separately.
The Han-Modular Docking Connector Metal can be connected either manually (directly or indirectly) or automatically. The construction of the device is particularly robust and mechanically stable to make it secure enough for all applications.
For further information on the HARTING Han-Modular Docking Frame Metal please click here.
