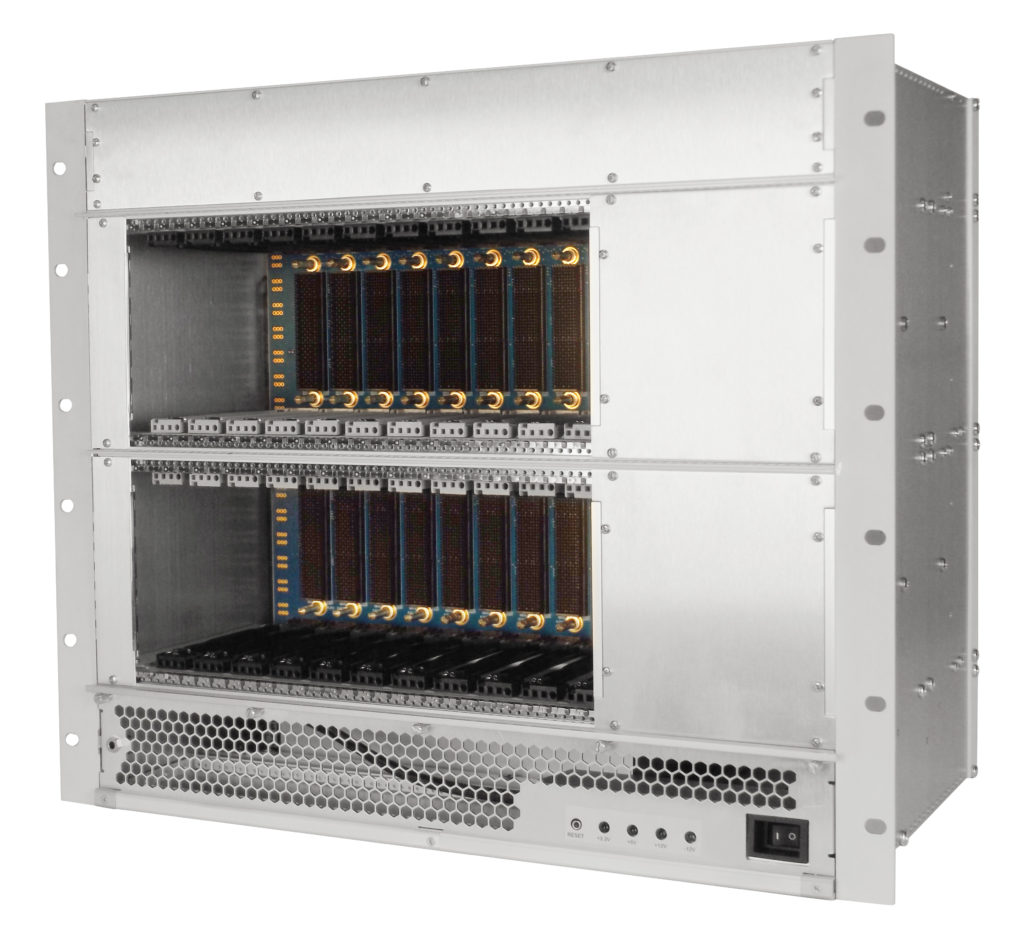

The 9U RiCool chassis platform features up to 32 OpenVPX backplane slots in the 3U size and up to 16 slots accommodating 6U cards. Powerful reverse impeller blowers reside directly above the boards. They pull air from below the card cage and blow the exhaust 90 degrees out the back. This allows the use of RTMs (rear transition modules) without adding chassis height. The fans are individually hot swappable, enhancing reliability and minimising downtime.
The Pixus RiCool chassis platforms feature various power supply options, including fixed, pluggable and redundant options. As experts in high-performance backplane design, the OpenVPX versions come in PCIe Gen3 or 40GbE speeds and beyond. OpenVPX shelf managers and VITA 62 power interface boards are optional.
Pixus provides OpenVPX chassis platforms in various front-to-rear, side-to-side, and bottom-to-top airflow configurations. The company also offers system platforms in CompactPCI Serial, MicroTCA, AdvancedTCA, VME64x and customised architectures.
