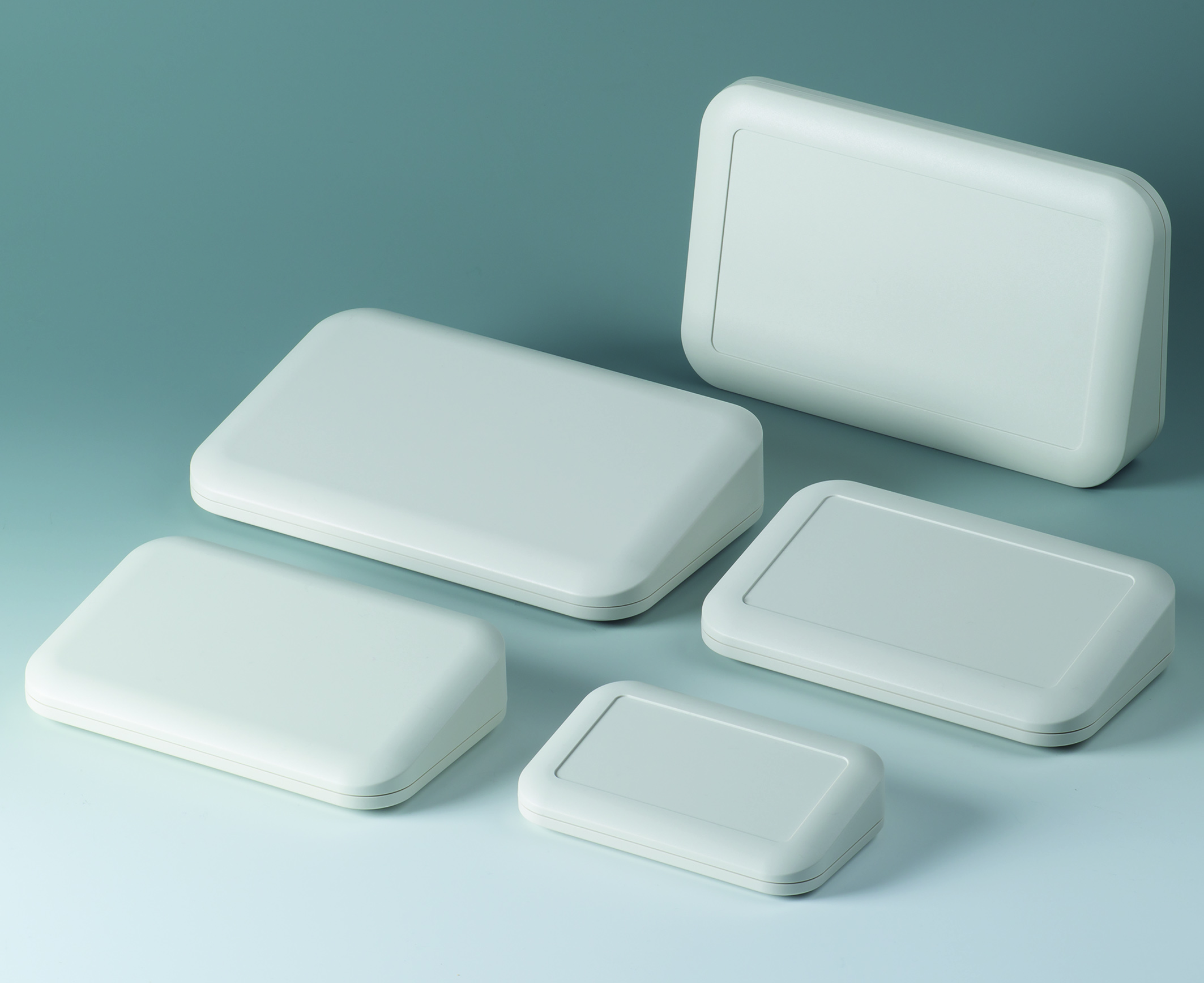

OKW’s Elegant New EVOTEC 150 Sloping Top Enclosures

OKW has extended its EVOTEC range of designer table-top plastic enclosures with a new sloping top version of its 150 size.

Soft-contoured EVOTEC electronic enclosures are elegant and ergonomic – but robust enough to withstand challenging working environments. Applications include measurement and control, IT, IoT/IIoT, gateways, medical, laboratory and environmental technology.

New EVOTEC 150 Version III features a recessed top that is inclined by 12° for more comfortable viewing and operation. Its large operating area can accommodate switches, pushbuttons and touch displays. This two-part enclosure is assembled with tamperproof Torx stainless steel screws, a key requirement for medical devices. PCBs can be fitted to screw pillars in the top and bottom. Rubber feet ensure stable positioning on flat surfaces.

OKW now offers sloping top versions of EVOTEC in three sizes: 150 (150 x 93 x 36 mm), 200 (200 x 124 x 45 mm) and 250 (250 x 155 x 54 mm). The latter two sizes can be specified with a recessed (Version II) or smooth (Version III) top.

EVOTEC is also available with an unrecessed flat top (Version I) in sizes 80 (80 x 50 x 22/26 mm), 100 (100 x 62 x 26/31 mm), 150 (150 x 93 x 35/54 mm), 200 (200 x 124 x 45 mm) and 250 (250 x 155 x 54 mm).

All EVOTEC enclosures are moulded from off-white (RAL 9002) UV-stable ASA+PC-FR (UL 94 V-0) as standard. Prices for the new model start at £17.

Accessories include IP 65 seals, a wall suspension element, a mounting bracket for DIN rails (TH35, G32), self-tapping PCB screws (PZ1 and Torx T8) and a Torx T8 screwdriver for assembly.

OKW can supply EVOTEC fully customised on request. Services include CNC machining; lacquering; product labels; EMC shielding; printing or laser marking of legends and logos; installation and assembly of accessories.

Visit the OKW website for further information: https://www.okw.co.uk/en/Plastic-enclosures/Evotec.htm
