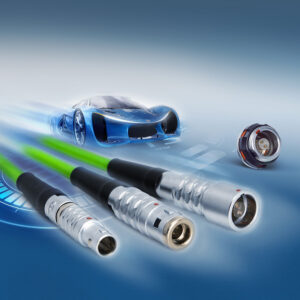

The ODU MINI-SNAP® SPE enables Ethernet connection via a single twisted-pair of copper cables, with voltage supply of terminal devices via PoDL [Power over Data Line].
The simpler design of this new generation of connectors gives both weight and space reductions for designers and developers.
- 1000BASE-T1 (IEEE 802.3bp)
- 1000BASE-T1 (IEEE 802.3bw)
- 10BASE-T1 (IEEE 802.3cq)
Maximum bridgeable distances of the standards vary between 15.40 & 1,000 metres.
SPE is being introduced into new automotive designs, replacing CAN and other bus systems. In future, communication, control & security functions will be managed uniformly via Ethernet.
The field of industrial automation is also keen to benefit from this, with SPE allowing the barrier-free connection of devices, sensor & actuator technology and a great deal more.
SPE is available for the ODU MINI-SNAP® series L / K and for the ODU-MAC® series.
- Limits with unshielded cables according to OPEN ALLIANCE
- Limits with shielded cables according to IEC 63171-6
- 1 Gbps up to 15m
- Up to IP68
- 5,000 mating cycles
- Push-Pull locking
- Cable assembly: various lengths and over-moulded varieties
