Mouser Gives More Bang for Your “Buck” with Analog Devices’ ADP5301 Step-Down Regulators

Mouser Electronics, Inc. is now stocking the ADP5301 high-efficiency, ultralow power step-down regulators from Analog Devices. Part of Analog Device’s comprehensive line of power management solutions, the ADP5301 are compact, ultralow-power buck regulators that enable designers to extend their battery life in portable devices with one of the highest ultra-light-load power conversion efficiencies in the industry. Delivering a 90 percent efficiency rating and consuming only 180 nA of quiescent current, the ADP5301 provides maximum power and battery life for longer periods of time, making these devices an ideal solution for a variety of Internet of Things (IoT) applications.

Analog Devices ADP5301 high-efficiency, ultralow power step-down regulators, available from Mouser Electronics, provide an input start-up voltage range from 2.15 V to 6.5 V, enabling designers to incorporate a variety of battery sources or other power sources and architectures. The ADP5301 devices feature an integrated voltage supervisory function that increases overall system reliability, and the devices’ output voltage is selectable from 0.8 V to 5.0 V through an external VID resistor and factory fuse. The total solution only requires four tiny external components to help meet even the most demanding board space requirements.

The flexible power management capabilities of the ADP5301 are achieved through the user-selectable SYNC/MODE pin. This pin allows the regulator to run between hysteresis mode and a low-noise forced PWM mode. The regulator in PWM mode produces a lower output ripple and supplies up to 500 mA of output current, whereas the regulator in hysteresis mode achieves excellent efficiency at a power of less than 1 mW and provides up to 50 mA of output current. This switchable configuration during operation provides extremely efficient power management functionality that helps meet both extended battery life and low system noise requirements. Other key features in the ADP5301 include separate enabling and quick-output discharge, as well as safety features such as overcurrent protection, thermal shutdown, and input under-voltage lockout.

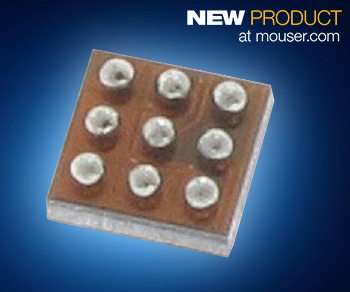

Analog Devices’ ADP5301 high-efficiency, ultralow power step-down regulators are available now at Mouser Electronics in a 9-ball, 1.65 mm × 1.87 mm WLCSP package that requires less than 3.1 mm² for mounting. The ADO5301 is targeted toward a board array of low-power IoT applications, including energy (gas and water) metering, wearable devices, wireless sensor networks, portable and battery-powered equipment, medical devices and keep-alive power supplies.  In addition, the ADO5301 is supported by an evaluation board, the 584-ADP5301-EVALZ, also available through the Mouser Electronics website.

To learn more, visit http://www.mouser.com/new/Analog-Devices/adi-adp5301-regulator/.

With its broad product line and unsurpassed customer service, Mouser caters to design engineers and buyers by delivering What’s Next in advanced technologies. Mouser offers customers 21 global support locations and stocks the world’s widest selection of the latest semiconductors and electronic components for the newest design projects. Mouser Electronics’ website is updated daily and searches more than 10 million products to locate over 4 million orderable part numbers available for easy online purchase. Mouser.com also houses an industry-first interactive catalog, data sheets, supplier-specific reference designs, application notes, technical design information, and engineering tools.

www.mouser.com
