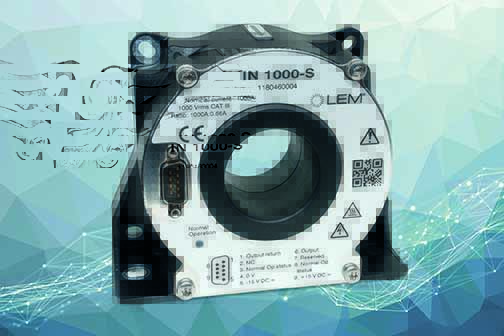

LEM expands its range of high accuracy transducers announcing the new IN 1000-S for non-intrusive and isolated measurement of DC, AC and pulsed nominal current of 1000 A. LEM already launched a 2000 A model last year as first model of this range reinventing the fluxgate technology.
+10 to +40 or +50°C temperature range is usually offered by the traditional high accuracy 1000 A transducer, the IN 1000-S model provides an extended operating temperature range of -40 to +85°C, allowing it to be used in a wider range of applications in addition to labs. These applications include: test equipment for traditional industrial applications, medical equipment (e.g. MRI, proton therapy etc.), precision motor controllers and metering.
LEM used patented innovations for this new transducer. A maximum signal processing has been treated in the digital domain, and a new approach to the fluxgate technology architecture has been applied for the ripple cancellation of the fluxgate drive frequency. The result is a compact transducer, maintaining its high accuracy over a wider temperature range, with reduced noise level vs the previous generation.
Processing the signal in the digital domain brings complete immunity to temperature effects, interference and supply voltage variation after the ADC. This contributes to offset and offset drift improvement.
The reduction of the interference or ripple from the fluxgate driving signal at a fixed frequency is as a result of the use of the DSP (Digital Signal Processor). Higher frequency harmonics have been reduced.
The remaining interference has been eliminated by driving a ‘ripple compensation coil’ whose amplitude and phase are adjusted during the calibration of each transducer.
After calibration, the remaining peak-to-peak ripple is less than 34 ppm, relative to the full-scale transducer output, over the full -40 OC to 85 OC operating temperature range.
These innovations contribute IN 1000-S model to provide the highperformance across the extended temperature range, deliveringextremely high accuracy with linearity and low offset over temperature range better than 3 ppm and 19.5 ppm respectively.
The IN 1000-S has been designed to operate from a bipolar +/-15 V DC power supply and will accommodate round primary conductors of up to 38.2 mm diameter. In addition to its normal current output, the transducer offers an additional output indicating the transducer state (low or high output levels) and an external LED showing normal operation.
An equivalent product would usually be made up of 2 parts, the measuring head and the treatment electronic, while this new model proposes a compact design integrating all in one, allowing a variety of panel mounting topologies (flat or vertical).
The transducer is CE markedand is covered by LEM’s five-year warranty.
