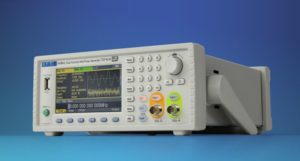

The TG4000 Series out-perform other generators in its price range by offering models at up to 240MHz and square waves up to 100MHz, with low harmonic distortion and Phase noise. Audio band THD is significantly better than similar generators at just 0.05%
The pulse generator function offers an exceptionally high pulse width resolution of 100ps over a period range from 10ns to 1000s. The pulse edge speed is independently variable from 3ns to 800s. Pulse jitter is dramatically lower than any comparable generator at only 30ps.
The two channels can be operated completely independently as if they were two separate generators. Coupled operation is available for frequency, amplitude and output on/off enabling simultaneous output changes on both channels. Relative phase can be set from -360 degrees to +360 degrees with 0.001deg resolution.
The main outputs can provide up to 10V pk-pk into 50Ω (20V pkpk EMF) for frequencies up to 80MHz. High levels of DC offset can be set in conjunction with low signal levels, and the attenuator can be fixed to prevent glitches when changing levels. Amplitudes can be entered as peak to peak voltage plus offset or in terms of high level and low level. The amplitudes are shown relative to a 50Ω load impedance or as the open circuit EMF values. Alternatively, the user can enter any load value between 1Ω to 10kΩ and the amplitude will be calculated accordingly.
A wide variety of waveforms between 1μHz and 240MHz with high resolution and accuracy. Sine waves are produced with low distortion to 240MHz. Square waves have fast rise and fall times at up to 100MHz. Linear ramp waves are produced to 5MHz. Ramp and square waves also have variable symmetry. The TGF4000 can generate high resolution, low jitter, variable edge time pulses to 100MHz with variable period, pulse width and amplitude.
Complex custom waveforms can be generated with 16-bit (14bit TGF4042/82) resolution and a sampling rate of 800MSa/sTGF4162/242 400MS/s TGF4042/82. Up to four waveforms can be stored in internal memory. Waveforms can also be generated by the supplied Waveform Manager Plus Windows application and downloaded to the instrument via USB, LAN or optional GPIB interfaces or via a USB flash drive.
Internal AM, FM, PM, ASK, FSK, BPSK, SUM* and PWM modulation make it easy to modulate waveforms without the need for a separate modulation source. Linear and logarithmic sweeps are also built in, with sweep rates selectable from 1 μs to 500s. Burst mode operation allows for a user selected number of cycles at each trigger event.
The Noise function provides wideband gaussian noise at bandwidths up to 100MHz and crest factor of more than five. Noise can be used both as a carrier waveform and as a modulating waveform for AM, FM, PM, PWM and SUM modulation types. As a carrier it can be AM, ASK or SUM modulated.
Additional features of the 16bit TGF4242 and TGF4162 include the harmonics generator function, waveform can be created by the addition of sine wave harmonics up to 16 harmonics, chosen from up to the 50th order. The amplitude and phase can be individually set for each harmonic. PRBS (Pseudo-Random Bit Sequence) is a binary waveform type that is widely used within secure communications systems. PRBS is offered with a choice of 8 sequence lengths at rates between 1mbps and 50Mbps. PRBS can be used as both a carrier waveform and a modulation.
The TGF4000 series is equipped with a 4.3 inch high resolution colour screen, providing added efficiency and clarity when carrying out complex testing. The graphic display demonstrates a quick visual insight into the waveform through the specifically colour coded graph, ensuring accurate and reliable results. Graphs for both channels can be displayed side by side for easy comparison or alongside a detailed description of the settings selected. Each channel has a unique set colour to provide instant recognition of the output channel selected when altering and updating settings or preferences.
LAN and USB interfaces are standard and there is full compliance to LXI Core 201. GPIB is optional.
Prices start at £575/ €695 for the 40MHz model and only £1195/ €1450 at 240MHZ.
