E-PEAS unveils constant voltage PMICs for intermittent input energy harvesting arrangements

Through the release of a further three new power management ICs (PMICs), e-peas is providing product developers with even greater scope to implement their energy harvesting systems. The engineering breakthroughs of these new devices include constant input voltage regulation, making them uniquely optimized for intermittent and pulsed power inputs, complementary to the existing AEM family.

The AEM00330 is a full power management chip, whereas the AEM00300 being a storage element charger. Both of them are self-configurable, with the ability to automatically switch between buck, buck-boost and boost operation. This enables faster adjustments with different source, storage and load arrangements (step-up, step-down, etc.) and maximizes these devices’ energy transfer capabilities. They have been designed to respond instantly to the power input once a pre-defined threshold has been exceeded – leading to quick and effective energy extraction. The operating input voltage range goes from 140mV to 4.5V, so power levels of 3µW to 570mW can be managed. Another key feature is their ability to swap from powering the load or the storage element, giving greater flexibility in applications where there should be initial focus on one or the other. Among the potential uses for these devices are door access systems, smart switches for smart home or smart building, point-of-sales (PoS) units and smart running shoes.

The AEM00940 is a boost solution designed for supporting high efficiency energy transfer from sources having a lower voltage than the storage element. It has an LDO-based output rather than a DC/DC-based one. The selectable operating input voltage spans from 50mV to 4.5V.

As well as pulsed and intermittent sources those three PMICs are highly suited to use with sources that require a long time to reach their open-circuit.

All three of these new e-peas devices have complete storage element versatility, allowing them to be applied to energy harvesting implementations with single and dual cell supercapacitors, Li-Ion, LiFePO4, Li-Po, NiCd, thin film batteries and solid-state batteries. Each of them has selectable and adjustable storage element protection mechanisms, covering over-charge and over-discharge.

“Not all energy harvesting can rely on longer lasting outputs. There are many cases where only a short burst will be available,” e-peas’ CMO Christian Ferrier states; “By developing solutions that can quickly react to such sources, we are bringing something truly unique to the market. Our new constant voltage PMICs can capture energy whenever it is present, addressing the needs of home and building automation, and many new use cases”

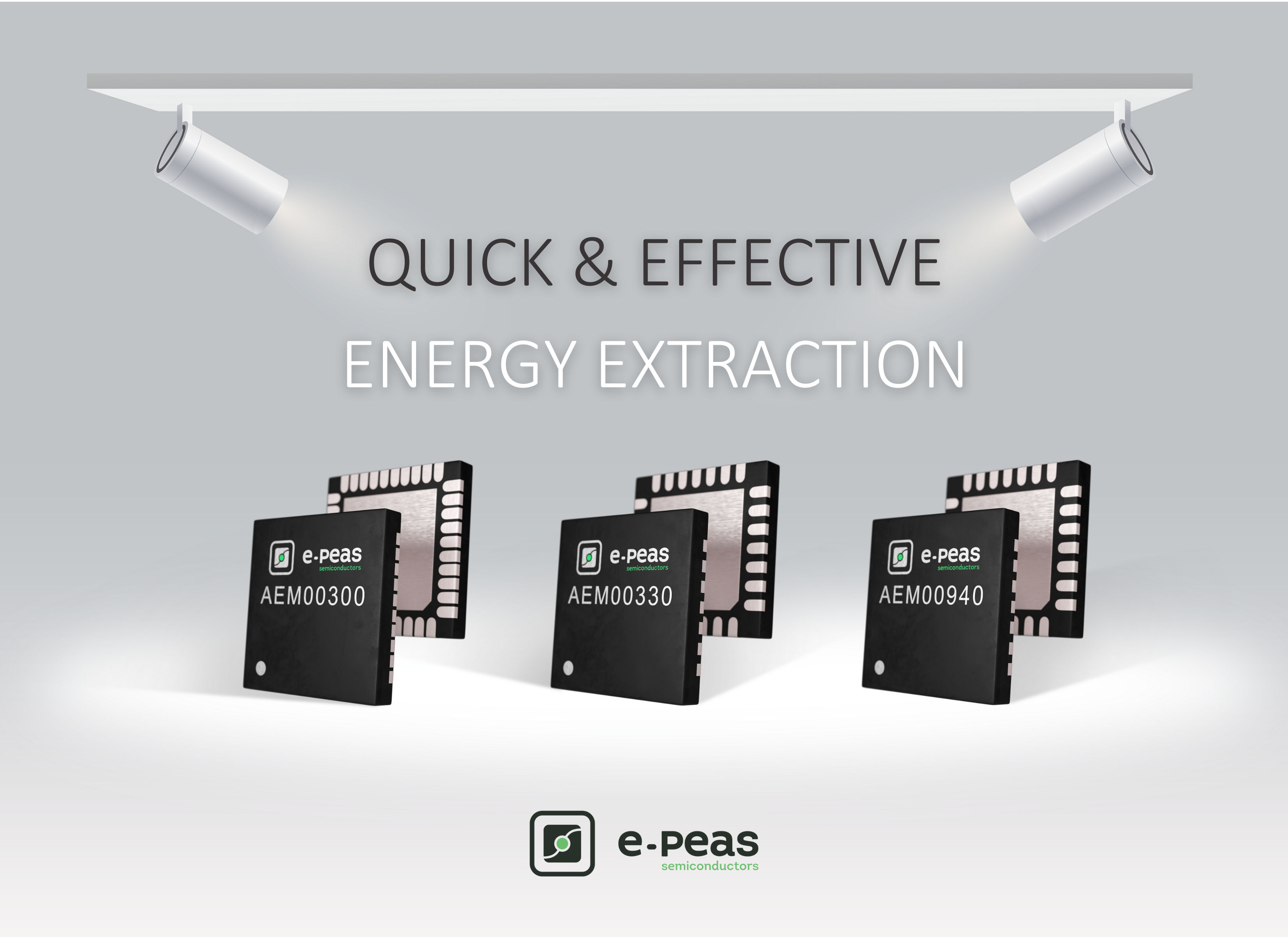

The AEM00330 is supplied in a 40-pin QFN package format with 5mm x 5mm dimensions. The AEM00300 comes in a 4mm x 4mm 28-pin QFN package, while the AEM00940 has a 5mm x 5mm QFN28 package. They can each be adapted to meet customers’ specific packaging needs and are also available in a bare die format for high volume orders (as for the overall e-peas product family). Dedicated evaluation kits (EVKs) for each of the new PMICs will be available soon, enabling engineers to test the rich configuration sets.
