Comprehensive 8D/38999 connector package available from Lane Electronics

“Name the 8D/38999 application and we will almost certainly have a complete connector solution for it” – Mick Varley, sales director

Leading electrical and electronic interconnection products distributor Lane Electronicscan now supply from stock a comprehensive portfolio of 8D/38999 connectors, derivatives and accessories. They are produced by the leading connector manufacturer Souriaufor whom Lane is an assembling distributor. The majority of standard connectors are available on a next day delivery basis, while customer specific solutions can be assembled from Lane’s extensive inventory of connector piece parts and delivered within surprisingly short lead times.

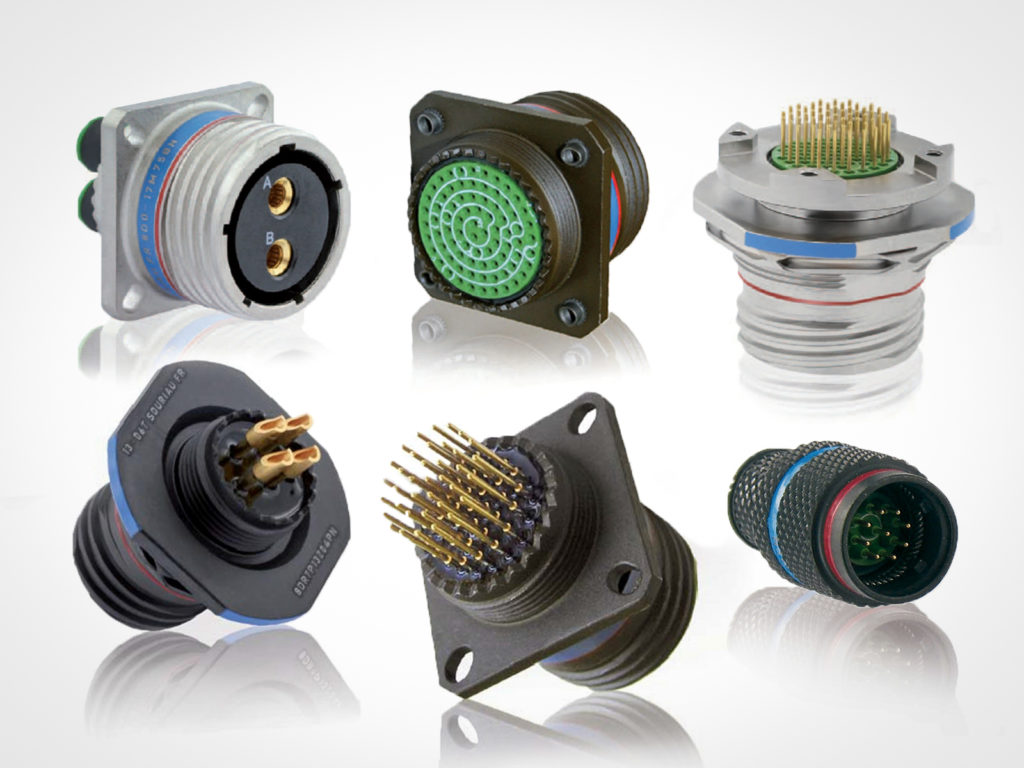

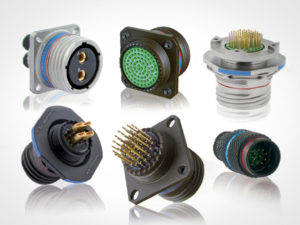

These 8D/MIL-DTL-38999 connectorsare high density, threaded coupling connectors available in a wide range of shell materials including aluminium, composite, marine bronze and stainless steel. They can be supplied in different finishes including RoHS compliant, black Zinc Nickel and Zinc Cobalt plating.

The 8D/38999 connectors can be supplied with signal, power, high power, coax, triax, quadraxor ELIO fibre opticcontacts. When fitted with quadrax, the connector is the ideal solution when fast datacoms is required in harsh environments. When Souriau’s ELIO fibre optic contacts are specified, the connector allows for very high-speed networks in equally demanding environments.

Meeting specific 8D/38999 applications is made easier by the availability of a wide variety of derivatives and accessories which, according to Lane’s Sales Director Mick Varley, extends from reinforced and hermetic sealing, to clinch nuts to ease assembly and on to double flange versions that can handle serious levels of vibration. Lane Electronics also holds a significant stockholding of Souriau’s micro38999connector series which offers all the benefits of the standard 8D/38999 platform but with significant size and weight savings.

According to Lane, certain 8D/38999 applications need full hermetic sealing but many can be accomplished using Souriau’s weight-saving, lower cost reinforced sealed versions which are available with male or female straight PC tail contacts. With a strong sealing performance of 10-7 atm.cm3 /s, the reinforced sealed receptacles feature a maximum operation temperature of 125⁰ and are 100 per cent scoop proof.

Designed to save time during installation, Souriau’s square flange receptacle can be supplied with four clinch nuts or four helicoils, both of which are self-locking. Designed to meet the requirements of MIL-DTL-38999, the ruggedness of the clinch nuts and helicoils has been extensively tested for impact resistance, push-out and wrench out. With an aluminium shell, the square flange receptacle can be finished in black zinc nickel, cadmium olive drab and nickel.

A double flange PCB mount version featuring shoulderless #16, #20 or #22 PC tail contacts provides high resistance to vibration. Available as a jam nut or square flange receptacle, this version allows direct grounding from the PCB to the flange.

Lane is an ideal source for all key connector types including circular, filtered, RF, coaxial, sub – miniature, backshells and adaptors, D Type, aerospace, test & measurement, IDC, 1 & 2-part PCB edge connectors and connectors for rack and panel applications.

www.fclane.com
