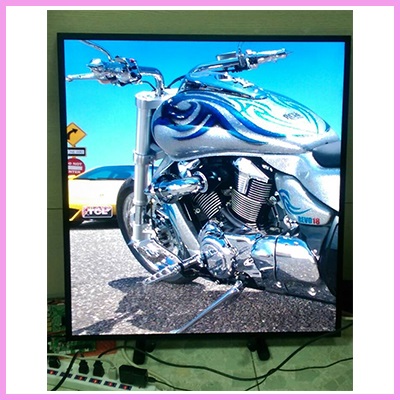

CDS Upgrades its 26.5″ Square Display to an Amazing 1200 nits

Check us out ūüôā

We’ve improved the¬†already impressive 26.5″ square LCD panel.

The LM265SQ1 is a 26.5 inch diagonally measured active display area with 1920 x 1920 resolution (1920 vertical by 1920 horizontal pixel array) and as standard has 300 nits is now available as a 1,200 nits version!

General Features;

  • Active Screen Size – 26.49 inches (672.85mm) diagonal
  • Outline Dimension – 491.8 (H) x 491.8 (V) x 13.1 (D) mm (Typ.)
  • Pixel Pitch – 0.0826*RGB(H)mm x 0.2478(V)mm
  • Pixel Format – 1920 horizontal by 1920 vertical pixels RGB stripe arrangement
  • Interface – LVDS 4Port
  • Colour depth – 16.7M colours
  • Luminance, White – 1,200 cd/m2¬†
  • Viewing angle (CR>10) – R/L 178 (Typ.), U/D 178 (Typ.)
  • Power Consumption – Target total TBD W(Typ.), (TBD W@VLCD, TBD W-w/o driver)
  • Weight – TBD g (Typ.)
  • Display Operating Mode – Transmissive Mode, normally black
  • Surface treatments – Hard coating (3H), Anti-glare treatment of the front polariser

This improvement of brightness opens up so many more opportunities for applications including window displays and possibly even outdoor if integrated into an IP65 housing.

To look further into square displays please visit our webpage

For more information and a data sheet please email or call our main office on +44 (0) 1634 327420.
