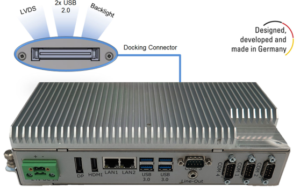

Display Technology Ltd are pleased to announce the new Embedded Box PC ‘BoxPC Pro 7300’ from our sister company Distec GmbH in Germering, Germany. Core of the Embedded box PC is the long-term available Intel® Core™ i5-7300U processor of the 7th generation. “Our newly developed Docking Connector offers three interfaces in one connection: LVDS with backlight and two USB 2.0,” explained Thomas Schrefel, Product Manager Embedded at Distec. “This allows the simultaneous use of an LVDS display with backlight, PCAP touch and webcam applications.” The Embedded Box PC offers high-computing performance and works reliably even in continuous operation with 9-24V DC-in. It is perfect for industrial applications in demanding environments, such as automation solutions, industry 4.0, digital signage, medical technology and transportation. With the label “Designed, developed and made in Germany”, Distec guarantees highest quality, reliability and long-term availability.
Variety of connections and user-friendly
A wide range of defined cables are available for connecting LVDS displays. In addition to the Docking Connector, the box PC offers a wide range of connection options: HDMI and DisplayPort for connecting monitors, two Gigabit Ethernet ports with Intel® I219V or I211AT chipset, as well as two RS232 and two RS232/422/485, which can be set via the BIOS. As usual in the industrial sector, the PC has a watchdog timer. Further connections are: four USB 3.0, two USB 2.0 and audio with line-out.
Distec supplies the Embedded box PC with a pre-installed Windows 10 IoT LTSC 2019 operating system. The Microsoft license, which is specially designed for the industrial market, guarantees worldwide use. The “BoxPC Pro 7300” offers easy installation and tool-free maintenance via knurled thumb screws that cannot be lost.
To ensure cyber security, Distec equips the box PC with a wide range of security features. For Secure Boot, a TPM 2.0 chip installed on the hardware side handles drive encryption with BitLocker, for example. Distec offers optimum protection, for instance in the event of a power failure or an attempted manipulation, by creating a customized Windows 10 IoT image with activated write filter and other features.
Click here to find out more about the BoxPC Pro 7300 or contact us for more information on our embedded range.
