Allegro MicroSystems Europe has introduced a new N-Channel power MOSFET driver capable of isolating a three phase load by controlling the in-phase isolation MOSFETS. Allegro’s A6862 motor driver IC is intended for automotive systems that must meet Automotive Safety Integrity Level (ASIL) requirements. This new device was designed for EPS (Electronic Power Steering) systems, electric braking, and three-phase relay driver applications and is supplied with detailed safety documentation.
In safety critical applications motor isolation is an essential requirement which is currently addressed with discrete circuitry or relays in most competitive solutions. Allegro’s A²-SIL products are designed with industry-leading, innovative features to help customers achieve the highest ASIL rating possible. The A6862 three-phase isolation driver is intended to replace a relay driven motor disconnect in automotive safety critical systems. It also provides the drive for reverse battery protection and battery isolation.
The A6862 has three independent floating gate drive outputs to maintain the power MOSFETs in the on state, or the off state, over the full supply range in the presence of high phase-voltage slew rates. This new generation offers the addition of a single input control, two independent activation inputs to put the A6862 into a low power sleep mode, and added gate to source protection to further assist end users to achieve critical system safety goals.

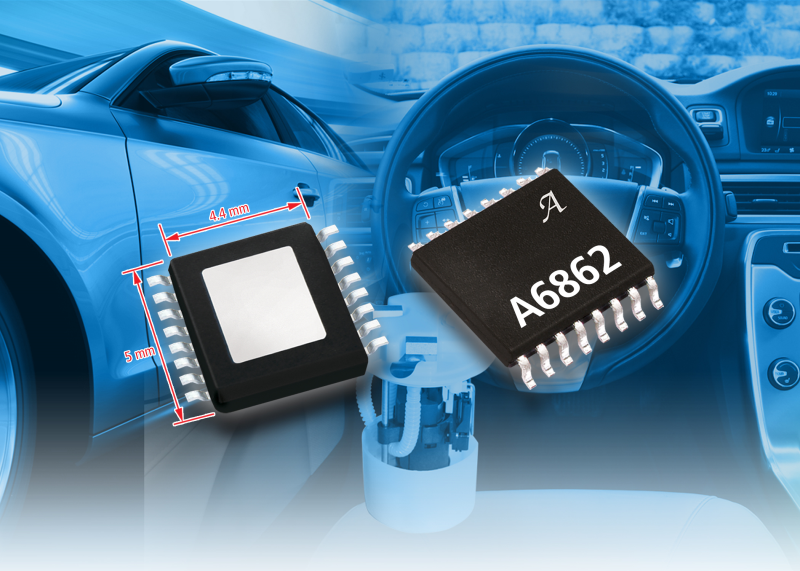

The A6862KLPTR-T is available in a 16-lead TSSOP package (suffix LP) with an exposed pad for enhanced thermal performance.
Please click here to download a copy of the A6862 motor driver IC data sheet.
