30W Interchangeable Plug Adapter comply with Medical standards and approved for Home Healthcare Applications

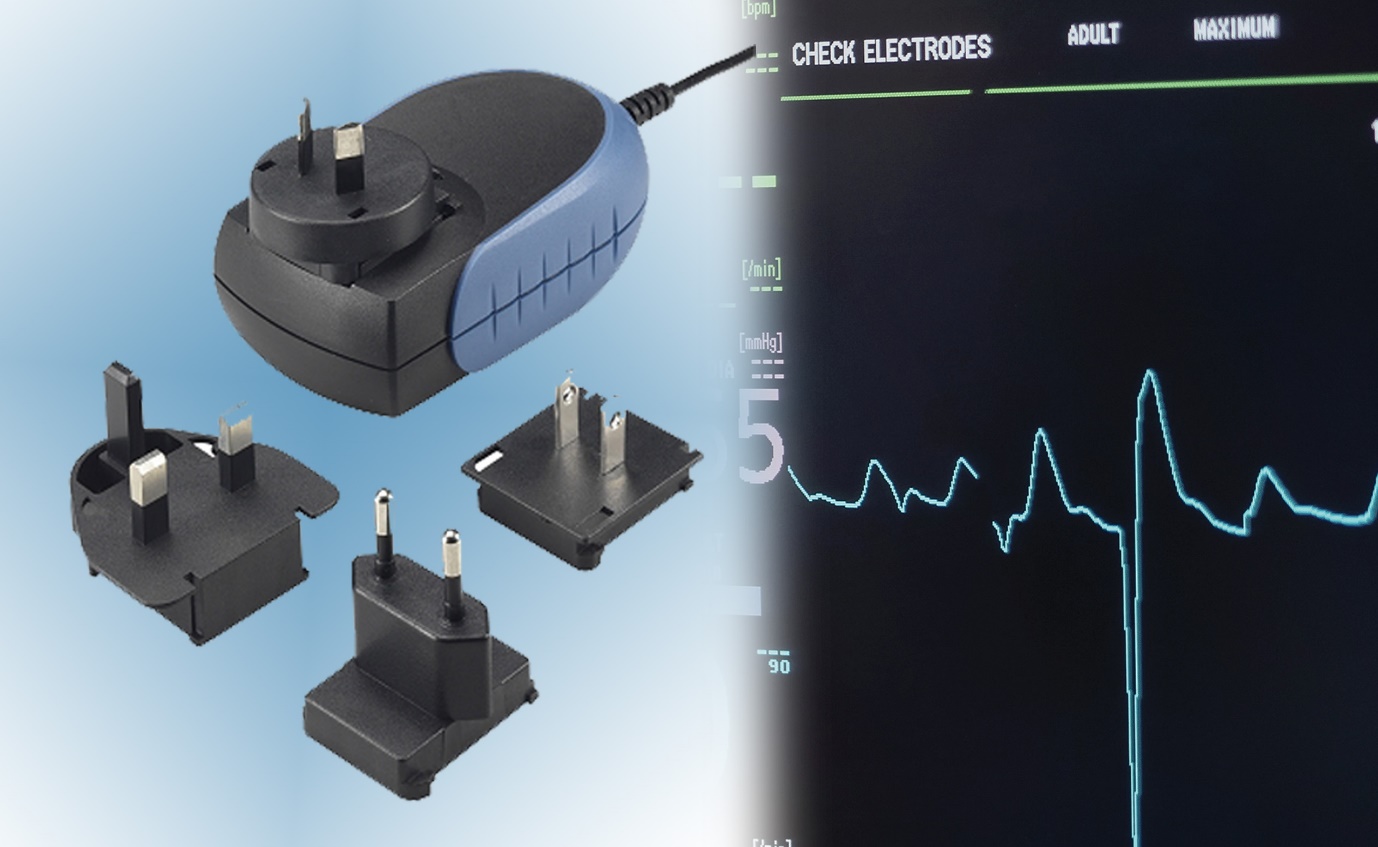

Components Bureau announce availability of the new Cincon TR30RDM series Medically certified external PSU, comprising of 6 models with interchangeable AC plugs and up to 30W output power. The AC-DC wall mount power adapter features 2xMOPP, Class II and is EN60601-1-11 approved for Home Healthcare Applications. The series complies with FCC CFR47 Part 18 Class B and EU CoC Tier 2 & DoE Level VI efficiency standards.

Average efficiency is 88% and the TR30M has an operating temperature of -25°C to 70°C. It offers an input range of 80 ~ 264VAC and output voltages 5V, 9V, 12V, 15V, 18V & 24V, and meets IP22 standards. The TR30RDM also complies with EN55011, EN60335 -1 and has a low leakage current <50uA,  continuous short circuit protection, over voltage protection and no load power consumption <75mW.

For more information about the full range of the TR30RDM please contact Components Bureau
