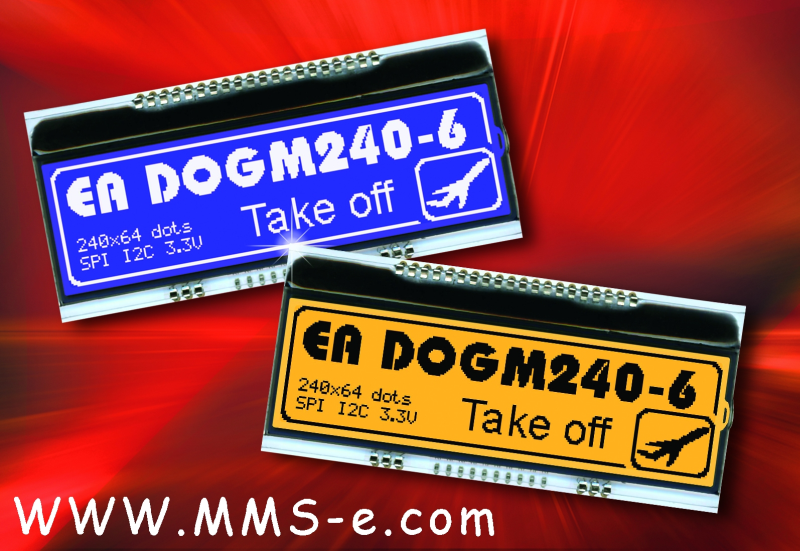

240×64 Display with touch-screen for 19“ applications

MMS Electronics Ltd has available a new 240×64 pixel high contrast, easy to read super-twist graphic display. The EA DOGM240-6 is 94mm long x 40 mm outline and view area is 90×24 mm. This display is ideal for use in 19” racks with 1RU or more. Operating from a single supply +2.7V to +3.3V without the need for a negative voltage. Onboard UC1611s controller with SPI and I²C Interface. Display, backlights and touch-screen can be ordered separately. Four STN and FSTN displays and 3 different LED backlight colours. White, amber and dual red/green are available. Without backlight the displays is only 2.8mm thick and 5.8 mm including backlight.  A simulator tool, font editor and USB test board EA 9780-3USB is available to help with development. Without any programming the display is pictured on the Windows™ desktop or powered with your bitmap from the test board. Other DOG graphic displays are available starting from 1.5” to 3.9” and  1×8, 2×8, 3×16 and new 4×20 alphanumeric displays.

For more information please visit www.mms-e.co.uk or telephone 01943 877668
